Express Auto Glass Workshop
Maruti Suzuki Ciaz Windshield Replacement
Watch precision glass cutting, OEM polyurethane bead application, and airtight acoustic installation executed in under 25 minutes on smartdriveindia.com.

25
Minutes
Turnaround
Step-by-Step Installation Video
Assembly Benchmarks
- 00:00 Removing cracked glass with cutting wire

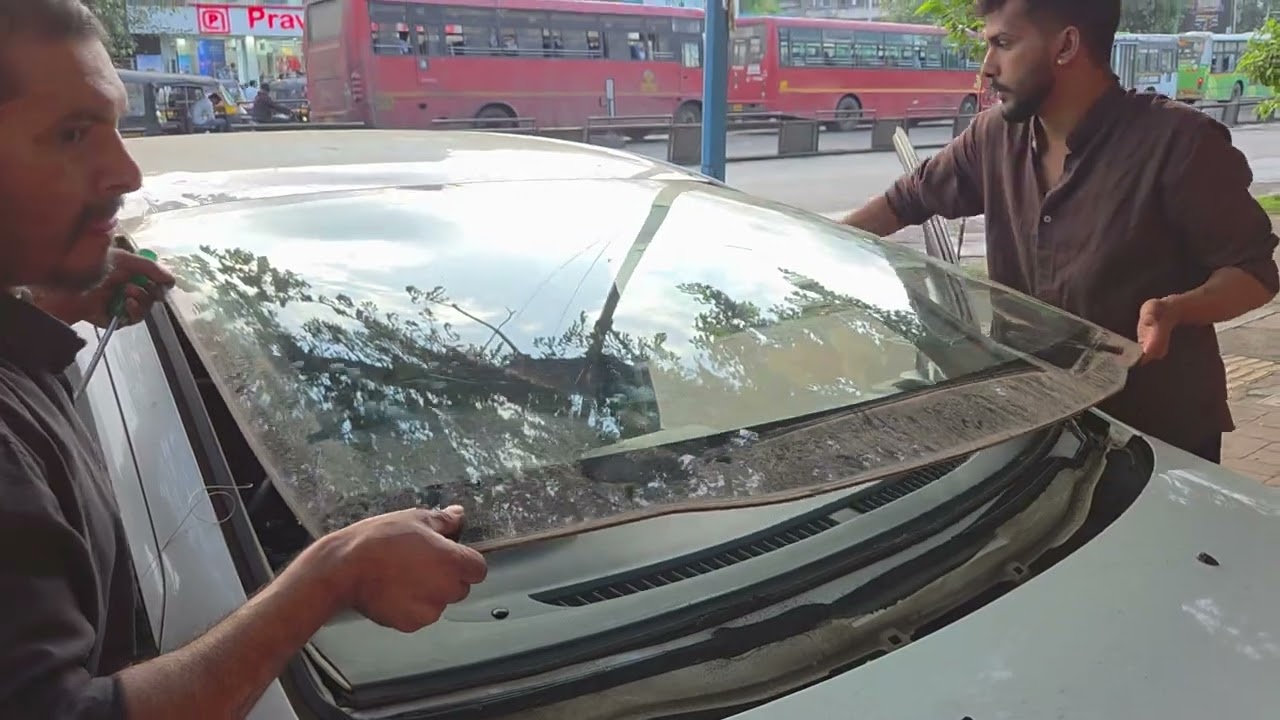

- 00:53 Lifting old glass & cleaning the frame
- 01:13 Inspecting new replacement windshield
- 01:20 Applying polyurethane sealant (PU adhesive)
- 01:46 Mounting & aligning the new windshield
- 02:08 Reinstalling cowl panel & wiper assembly
- 02:16 Securing glass with high-tack support tape
Featured Products
AIS OEM Spec
Maruti Ciaz Front Windshield Glass
- Acoustic solar control lamination
- Direct chassis fit with mirror base
- ECE R43 certified safety shatterproof
OEM Standard
Check Part
Chemical Bonding
High-Viscosity PU Adhesive Sealant
- Crash-tested drive-away structural bond
- Zero sag during vertical bead extrusion
- Weatherproof and leak-proof seal
Industrial Grade
Check Part
Specialized Tools
Braided Cut-Out Wire & Grip System
- High tensile gold-core steel braiding
- Zero paint scratch chassis clearance
- Includes dual ergonomic grab handles
Workshop Kit
Check Part
Windshield Replacement Technical Overview
Replacing the front windshield on a Maruti Suzuki Ciaz demands strict adherence to automotive glass safety standards because the windshield accounts for nearly 30% of the vehicle’s structural cabin integrity during rollovers and directs front passenger airbag deployment. Technicians begin by decoupling the windshield wiper cowl cover, unbolting wiper arms, and disconnecting internal wire harnesses. Next, braided high-tensile wire is threaded behind the damaged glass to cleanly shear the aged bonding bead without scoring the pinch-weld primer.
Once the fractured panel is lifted off via pneumatic suction lifters, technicians scrape the residual urethane down to a consistent baseline of one to two millimeters before applying specialized corrosion-inhibiting frame primer. High-modulus polyurethane adhesive is extruded along the glass perimeter in an unbroken triangular bead using an industrial dispensing gun. The new laminated glass is hoisted into position, seated against factory index stops, aligned with roof pillars, and secured with retaining tape. Curing takes roughly two hours before vehicle handover at smartdriveindia.com.
- Acoustic damping laminated safety glass blocks road roar and UV rays
- OEM-rated high-modulus polyurethane sealant restores body rigidity
- Cold wire shearing process prevents scratching sheet metal paintwork
- Correct cure times prevent windshield detachment during airbag inflation
Glass Engineering Standards
MOD_01 // AIRBAG SUPPORT
Structural Backstop Rigidity
In collisions, front passenger airbags deploy against the windshield at 300 km/h. Structural PU sealant prevents windshield pop-out, keeping the airbag cushioned properly.
MOD_02 // ACOUSTIC INSULATION
Triple-Layer PVB Lamination
The replacement glass integrates an ultra-thin acoustic poly-vinyl butyral layer that deadens engine rumble, high-speed wind buffeting, and highway road noise.
MOD_03 // PINCH-WELD INTEGRITY
Anti-Corrosion Primer Shield
Pre-treatment barrier primer stops rust forming on the frame under the sealant bead, ensuring leak-free bonding for the entire life of the vehicle.
Frequently Asked Questions
How long after replacement can I safely drive my Maruti Ciaz?
You should observe a minimum safe drive-away time of 2 to 3 hours when high-modulus polyurethane adhesive is used. Keep the high-tack retention tape in place for 24 hours and avoid automated high-pressure car washes for 48 hours to preserve the cure line. Consult our full guide at smartdriveindia.com.
Will replacing the windshield void my cashless insurance coverage?
No. Front windshield replacement is fully covered under comprehensive motor insurance policies across India. Claiming through automotive glass partners only requires your policy copy, registration certificate (RC), and driving licence.
Why is OEM polyurethane sealant used instead of regular silicone?
Silicone lacks the shear strength required for automotive structural support. Polyurethane adhesive provides up to 30% of total cab rigidity, stops water and air leaks, and withstands passenger airbag deployment forces without shearing.
Can a cracked Maruti Ciaz windshield be repaired instead of replaced?
Small chips and bullseyes smaller than a coin outside the driver’s line of sight can be treated using optical resin. Long single-line cracks or edge cracks compromise glass integrity and require full replacement.
