How to Replace Air Intake Hose: Suzuki Ciaz 1.3L Diesel

Eliminate power loss, whistling boost leaks, and turbo dusting damage with this complete DIY guide for the SmartHybrid SHVS DDiS engine on smartdriveindia.com.

Watch Full Tutorial Buy OEM Part

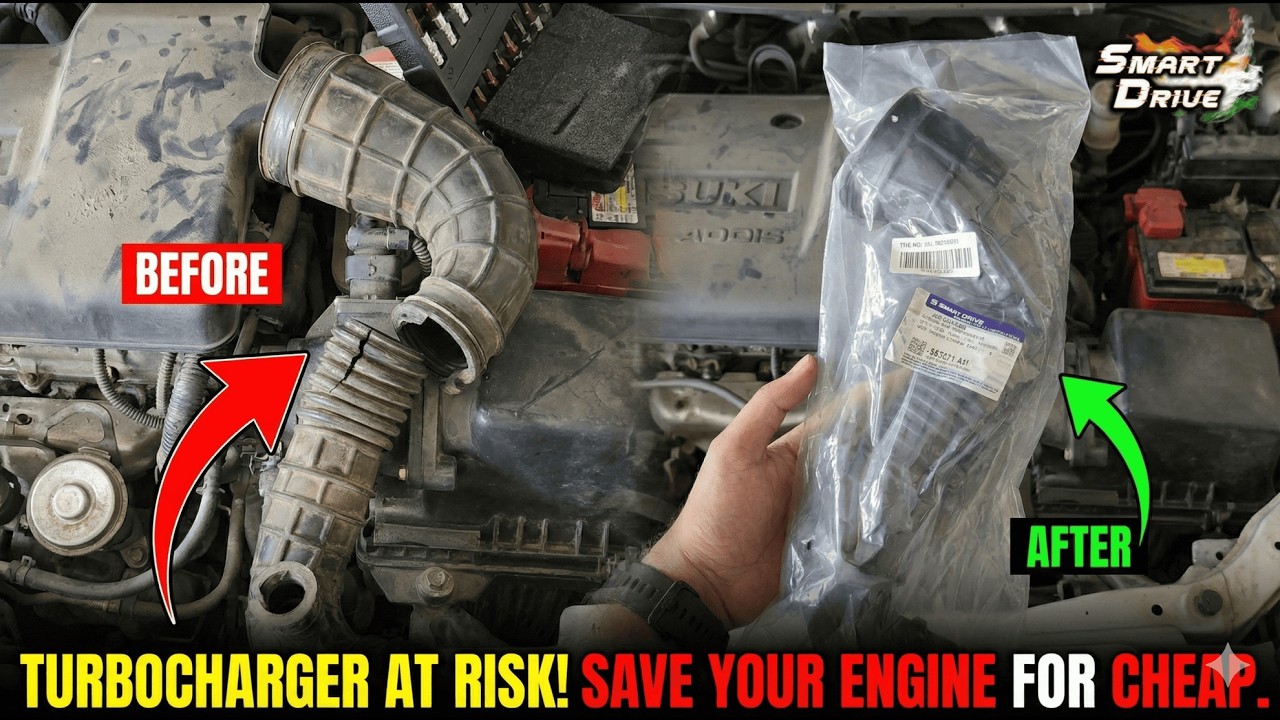

Suzuki Ciaz Air Intake Hose Replacement DIY Guide

30

Minute
DIY Fix

Step-by-Step Installation Video

Featured Products

Boodmo OEM Sourced

Maruti Genuine Air Cleaner Outlet Hose

Heat-resistant molded synthetic rubber
Precision factory diameter for turbo snout
Pre-notched locator tabs for perfect seating

100% OEM Fit Order on Boodmo

Essential Tool

Flexible Extension Screwdriver Kit

Multi-angle bendable shaft for deep engine bays
Standard 1/4-inch hex driver bit receiver
Reaches hidden lower turbo clamp screws

DIY Garage Kit View Gear

Clamping Hardware

Stainless Worm-Drive Retaining Clamps

Corrosion-resistant marine grade steel band
Smooth beveled inner edge prevents rubber cuts
Factory W3680 replacement tension ring spec

Air-Tight Seal View Hardware

Air Intake Hose Technical Overview

The air intake hose on the Maruti Suzuki Ciaz 1.3L DDiS diesel engine plays a vital role in routing metered, particulate-free air directly from the air cleaner box into the turbocharger inlet and engine induction system. Operating in a harsh under-hood environment subjected to intense engine vibrations, blow-by oil vapors, and high thermal cycles, the factory rubber material gradually degrades, stiffens, and develops fatigue fractures after several years of service. When cracks emerge, unmetered atmospheric air bypasses the air filter element, introducing abrasive road dust and microscopic grit directly into the turbocharger compressor wheel. At turbine operating speeds exceeding one hundred thousand revolutions per minute, even minute particulate ingress causes compressor wheel dusting, eroding blade profiles, destroying dynamic balance, and ultimately provoking catastrophic turbocharger failure. Furthermore, unmetered air breaches disrupt Mass Air Flow sensor calculations, causing sudden engine power loss, turbo lag, black smoke under hard acceleration, and a distinctive high-pitched whistling noise during boost buildup. Replacing the damaged intake conduit with an authentic OEM heat-resistant hose restores proper vacuum sealing, optimizes SmartHybrid SHVS engine responsiveness, protects delicate boost components, and prevents costly workshop overhauls across smartdriveindia.com.

Prevents compressor blade dusting and expensive turbocharger failure
Eliminates whistling air leaks and restores factory low-end torque
Ensures accurate Mass Air Flow metering for optimal diesel fuel economy
Accessible thirty-minute DIY repair using standard hand tools and Boodmo parts

Turbocharger Intake Engineering

TELEMETRY // BOOST INTEGRITY

Vacuum & Air Mass Calibration

The 1.3L DDiS diesel relies on vacuum equilibrium between the air cleaner outlet and turbo intake. Fractured rubber causes MAF calculation errors, triggering fuel trims imbalances.

DAMAGE // WHEEL DUSTING

Turbine Impeller Protection

High-velocity intake suction pulls fine silica directly through split rubber. Ingested grit sandblasts the alloy compressor blades, unbalancing turbine shafts spinning above 150,000 RPM.

CLIMATE // VACUUM EFFICIENCY

Engine Bay Thermal Management

Intake breaches collapse manifold vacuum, stressing the engine at idle and altering cooling fan and air conditioning performance across hot Indian traffic cycles.

Frequently Asked Questions

Why is the air intake hose so important?

It ensures that only clean, filtered air reaches the turbocharger and engine cylinders, preventing road dust and debris from destroying internal induction parts. Learn more at smartdriveindia.com.

What happens if I drive with a cracked intake hose?

Driving with a cracked hose leads to "duster" damage in the turbocharger blades, loss of engine boost pressure, reduced fuel efficiency, and eventually catastrophic engine failure.

How do I know if my Ciaz intake hose is failing?

Common symptoms include visible surface cracks, blow-by oil sweating on the rubber exterior, engine lag under acceleration, or a distinct whistling noise during boost buildup.

Is this DIY applicable to other Suzuki models?

Yes. The 1.3L DDiS diesel engine is shared across the Maruti Suzuki Swift, Dzire, Ertiga, and Baleno, though exact pipe contours and clamp orientations may slightly differ.

How long does the replacement take?

With standard workshop hand tools, the entire replacement procedure takes approximately 30 minutes from disassembly to final clamp tightening.

Do I need special tools for this installation?

No special proprietary tools are needed. A standard flathead screwdriver or socket set for the hose clamps and a pair of pliers are usually all that is required, though a flexible screwdriver helps access recessed lower clamp screws.

Why use genuine parts from Boodmo?

Genuine OEM parts guarantee the correct rubber compound formulation capable of withstanding extreme engine bay heat, blow-by oil mist, and vibration without cracking prematurely.

Can a bad hose affect the Air Conditioning?

Yes. Unmetered air entry disrupts engine vacuum balance and overall thermal management, which can impact idle stability when the air conditioning compressor cycles on.

What is the cost difference between DIY and a workshop?

By completing the job yourself, you avoid high dealership diagnostic and labor charges, which can equal or exceed the cost of the replacement part itself.

Does the SHVS system make this repair harder?

Not significantly. The SmartHybrid components are integrated elsewhere in the electrical system, keeping the air cleaner box and turbocharger inlet completely accessible for DIY enthusiasts.
